STEVIE

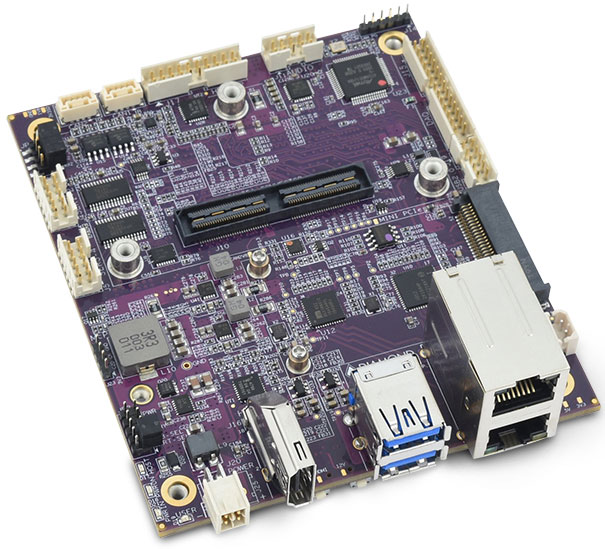

STEVIE is a compact, low-cost, feature-packed carrier board solution for the NVIDIA Jetson AGX Xavier computer module. STEVIE measures 92 x 106mm (3.62 x 4.17"), just slightly larger than the AGX Xavier module (87 x 100mm). This small outline enables Stevie to provide the maximum amount of I/O and support full-size 2280 M.2 modules in the smallest possible size.

The table below lists the I/O features of the available Stevie configurations. In all respects not listed, all models are identical.

JETBOX-STEVIE

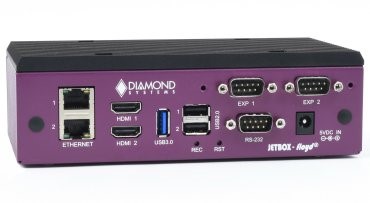

JETBOX-STEVIE is a compact Nvidia Jetson AI computing platform ready to deploy. It includes the high performance Jetson AGX Xavier embedded computing module installed on our STEVIE carrier board with a Linux OS installed and preconfigured to support all the I/O on Stevie. Jetbox-Stevie offers the highest performance Jetson computing platform in the smallest available size.

Jetbox-Stevie features multiple expansion sockets for additional I/O and storage capacity to meet a wide range of application needs. Dual SMA antenna cutouts support the installation of WiFi and cellular modem modules for network connectivity. The enclosure is DIN rail mountable or can be used in a "table top" scenario.

The front panel includes 4 DB9 connectors which provide access to the 4 multi-protocol serial ports on Stevie. Two ports can be converted to CAN by replacing one of the cables with the accessory CAN cable included with the system.

ELTON

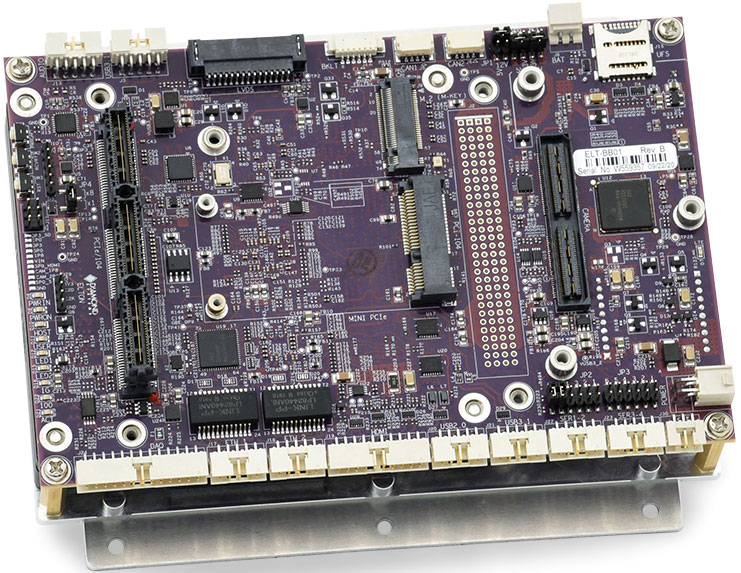

With its NVIDIA Xavier computing power, rugged design, and PCIe/104 expansion capability, Elton offers the ideal platform for implementing high performance computing and AI applications in mobile and harsh environments.

Elton utilizes the NVIDIA Jetson AGX Xavier embedded computer module to deliver unmatched performance for AI, machine learning, image processing, and other compute-intensive tasks. The Xavier module delivers up to 30 TeraOps in performance (3 x 1013 operations per second) at a maximum power dissipation of 30 watts. Xavier also offers scalable performance for applications requiring lower overall power consumption of 10 or 15 watts. The module runs at 32 TOPs on a 512-core Volta GPU with Tensor Cores and accelerators, enabling high-performance AI-powered autonomous machines like never before. At 87 x 100mm (3.4 x 3.9") it is slightly bigger than the other Jetson modules.

FLOYD SC

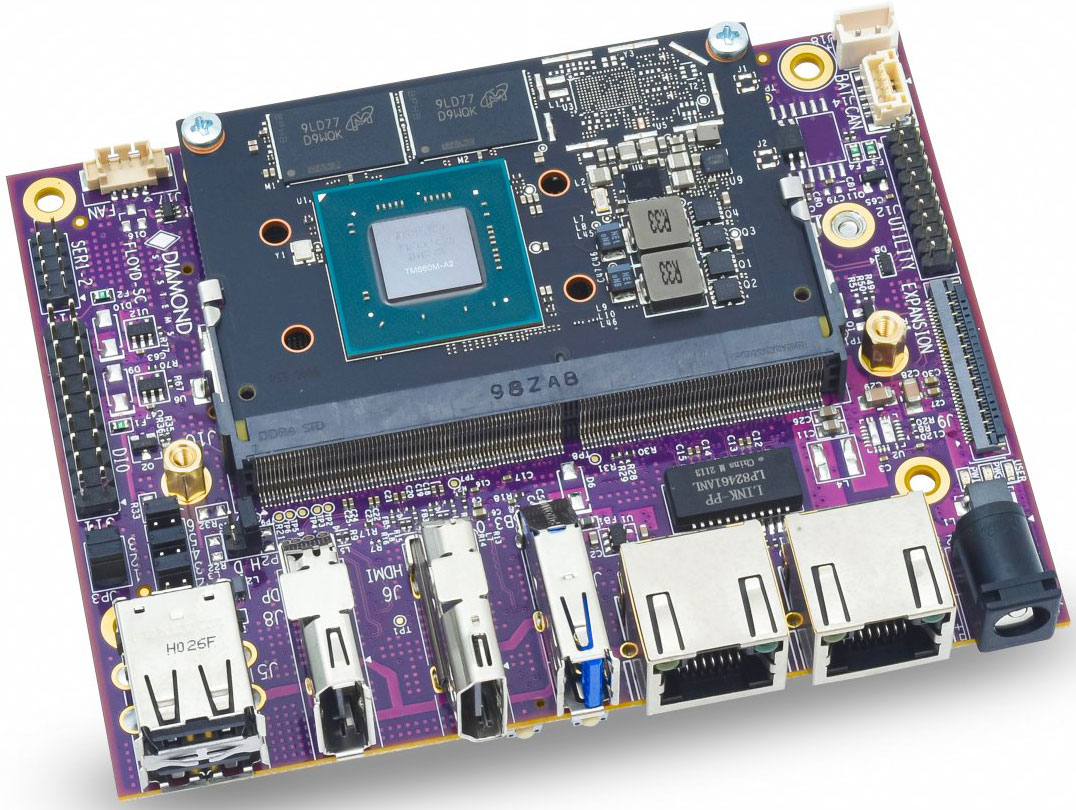

The FLOYD SC compact carrier board converts the Nvidia Jetson Nano / TX2 NX / Xavier NX modules into complete embedded systems by providing interface circuitry, I/O connectors for all module features, camera interfaces, power supply, and additional I/O in a solution measuring only 4.3x3.3� / 110x85mm. A novel expansion I/O connector enables connection of standard and custom daughterboards with additional I/O functionality to simplify the development of customized Jetson solutions.

Floyd SC features up to 3 CSI camera inputs, 2 Gigabit Ethernet ports, 2 USB 2.0 ports, 1 USB 3.0 port, 1 RS-232 and 1 RS-232/485 serial port, 16 GPIO, and HDMI + DP display support. With the NX module installed a second Ethernet port and a CAN port are available. An M.2 M-Key NVME socket supports both 2242 and 2280 size I/O and flash storage modules. Wide voltage input 7-24V provides adaptability to a range of power supplies.

JETBOX FLOYD-SC

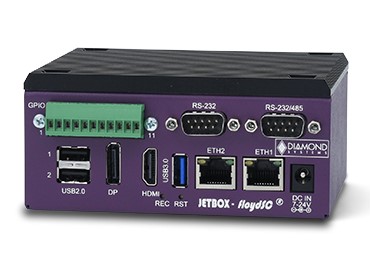

Jetbox-FloydSC provides a complete deployable solution for AI at the edge utilizing the Nvidia XN / TX2 NX / Nano compact GPU modules. JetBox-Floyd SC includes the Floyd SC carrier board and the selected Jetson module with Linux OS loaded, integrated into a compact steel + aluminum enclosure ready for use.

The integrated heat sink cover provides cooling – no fan is required. An internal M.2 socket supports up to 2TB additional storage beyond the flash included on the Jetson module. Shelf and DIN rail mounting are supported. A 12V AC adapter is included with the system.

With the NX module installed, one CAN port can be made available with an internal cable that replaces one of the serial ports on the front panel.

Floyd

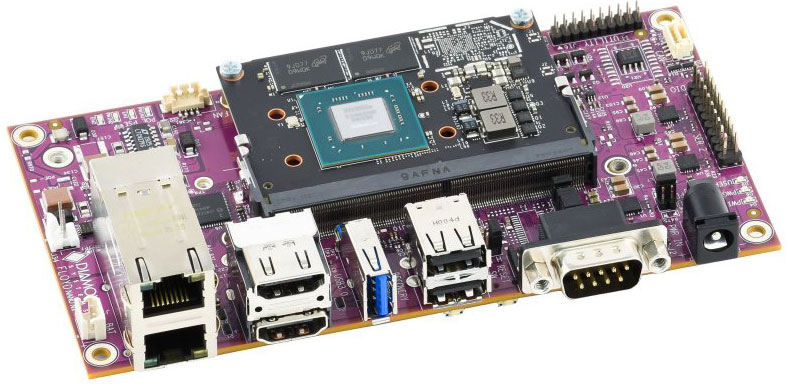

The FLOYD carrier board converts the Nvidia Jetson Nano and Xavier NX modules into complete embedded systems by providing interface circuitry, I/O connectors for all module features, camera interfaces, power supply, and additional I/O. Camera inputs include 2 PoE Gigabit Ethernet ports, 3 MIPI/CSI 2/4-lane connectors, and 1 USB 3.0 port. MiniCard, M.2, and Micro SD sockets support I/O expansion and storage. FLOYD + NVIDIA redefine possibility; the combination of Nvidia’s performance/power efficiency and Diamond’s I/O enables a new generation of high-compute, low-cost solutions.

Carrier Board Configurations

Floyd is available in two configurations: FLD-BB01 offers the complete suite of I/O features, while FLD-BB02 targets lower-cost applications requiring less I/O. The BB02 model also omits the PCIe switch needed for the BB01 additional I/O, thereby enabling a full PCIe x4 link to the M.2 socket for potentially higher flash memory read/write speeds.

JETBOX-FLOYD

JETBOX-FLOYD is a compact Nvidia Jetson AI computing platform ready to deploy. It includes the Jetson Nano or NX module installed on our FLOYD carrier board with a Linux OS installed and preconfigured to support all the I/O on Floyd.

Jetbox-Floyd is available in four standard baseline configurations of Jetson module and baseboard features:

Ziggy

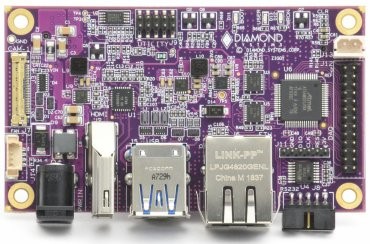

Ziggy offers a compact, low cost platform for evaluation of Jetson computer modules as well as implementation of a marketable solution for AI and machine learning applications. Ziggy provides access to the most popular I/O features of the Jetson modules, including camera, Ethernet, USB, and serial. In addition it features a unique data acquisition circuit with analog input, analog output, and digital I/O to enable Ziggy to interface to the "real world" of analog and digital sensors and controls.
