PIC clicker

PIC clicker is an amazingly compact starter development kit which brings innovative mikroBUS™ host socket to your favourite microcontroller. Board features all you need to get started: PIC18F47J53 microcontroller, USB connector, two LEDs and push buttons, reset button, mikroProg connector and headers for interfacing with external electronics.

STM32 M4 clicker

STM32 M4 clicker is an amazingly compact starter development kit which brings innovative mikroBUS™ host socket to your favorite microcontroller. Board features all you need to get started: 32-bit STM32F415RG microcontroller, USB connector, two LEDs and push buttons, reset button and headers for interfacing with external electronics.

PIC32MX Clicker

PIC32MX clicker is an amazingly compact starter development kit which brings innovative mikroBUS™ host socket to your favorite microcontroller. Board features all you need to get started: 32-bit PIC32MX534F064H microcontroller, USB connector, two LEDs and push buttons, reset button and headers for interfacing with external electronics.

CEC1302 Clicker

CEC1302 clicker is an amazingly compact starter development kit which brings click board™ connectivity to the 32-bit ARM® Cortex™-M4 CEC1302 microcontroller with an integrated cryptographic engine. Board features all you need to get started: 32-bit CEC1302 microcontroller, USB-UART connector, two LEDs and push buttons, reset button and headers for interfacing with external electronics.

MINI-32 Board

High-end emulator for professionals who need tracing, complex breakpoints, etc. This is a tool set that includes hardware and software tools for developing applications based on the AVR microcontrollers under control of one integrated development environment (IDE). A full package includes MCA-AVR macro assembler, PDS-AVR software debugger/simulator, PICE-AVR in-circuit emulator and ChipProg+ universal programmer integrated under control of the project IDE. The IDE with an embedded editor, project manager, MCA-AVR macro assembler and PDS-AVR software simulator is a common part of the Project package. This tool set provides a complete development cycle, from editing source texts, to getting debugged code, and "burning" it into a target microcontroller or memory device. Selected third parties' compilers can also be bundled with the Phyton's tools.

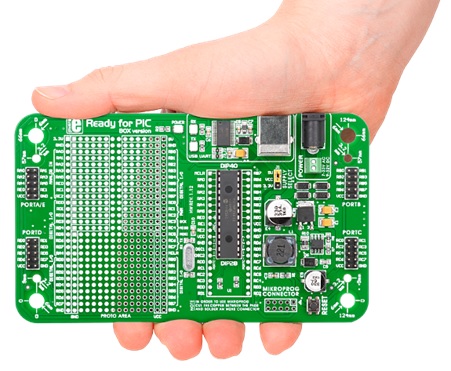

Ready for PIC

Ready for PIC Board is the best solution for fast and simple development of microcontroller applications using 28- and 40-pin PIC MCUs. It comes with PIC18F45K22 connected to 8MHz crystal oscillator. It contains four IDC10 headers for all available microcontroller ports, USB-UART module, prototyping area and a power supply circuit. Board is specially designed to fit into special white plastic casing which is sold separately.
PIC microcontroller on board

Now with PIC18F45K22

Ready for PIC comes with PIC18F45K22 microcontroller, which is a great choice for projects of both beginners and professionals.

Easy Programming

Bootloader inside

Having fast UART bootloader, this board is ready to rock right out of the box. No need for external programmers.

Ready for PIC (DIP28)

Ready for PIC (DIP28) Board is the best solution for fast and simple development of microcontroller applications using 28-pin PIC MCUs. It comes with PIC18F25K22 connected to 8MHz crystal oscillator. It contains four IDC10 headers for all available microcontroller ports, USB-UART module, prototyping area and a power supply circuit. Board is specially designed to fit into special white plastic casing which is sold separately.

Board comes preprogrammed with fast UART bootloader which eliminates the need for external programmers. Board also supports fast USB 2.0 mikroProg™ programmer with hardware In-Circuit Debugger.

dsPIC-Ready1 Board

TA USB supported prototype board for 40-pin dsPIC30F MCUs with IDC10 extension.The board is powered by an external 8-16V AC/DC power supply connected via on-board connector. On-board USB to serial UART interface FT232R that can be easily connects to a PC.

Description

dsPIC-Ready1 Board provides the best solution for fast and simple development of 40-pin dsPIC30F microcontroller applications (dsPIC30F3011 and dsPIC30F4011). It includes connectors for connecting the dsPICprog with mikroICD in-system stand-alone programmer. These connectors enable you to program microcontrollers without any other additional devices. There are also IDC10 connectors linked to the microcontroller pins provided on the board. They enable many peripheral modules to be connected to the board, so you can quickly assemble functional working environment that perfectly suits your needs.

dsPIC-REady1 Board features a USB to serial UART interface FT232R which simplifies USB to serial designs and reduces external component count by integrating an external EEPROM, USB termination resistors and a clock circuit requiring no external crystal into the device.

Accessory Boards

Accessory Boards were designed to allow students or engineers to easily exercise and explore the capabilities of the various microcontrollers with peripheral devices such as: ADC, DAC, CAN, Ethernet, IrDA, MP3, RS485 and many more.

Note: Accessory Boards are sold separately.

dsPIC-Ready2 Board

A USB supported prototype board for 40-pin dsPIC30F with IDC10 extension powered by an external 8-16V AC/DC power supply connected via on-board connector. On-board USB to serial UART interface FT232R easily connects to a PC.

Description

dsPIC-Ready2 Board provides the best solution for fast and simple development of

40-pin dsPIC30F microcontroller applications (dsPIC30F3014 and dsPIC30F4013). It includes connectors for connecting the dsPICprog with mikroICD in-system stand-alone programmer. These connectors enable you to program microcontrollers without any other additional devices. There are also IDC10 connectors linked to the microcontroller pins provided on the board. They enable many peripheral modules to be connected to the board, so you can quickly assemble functional working environment that perfectly suits your needs.

dsPIC-Ready2 Board features a USB to serial UART interface device FT232R which simplifies USB to serial designs and reduces external component count by integrating an external EEPROM, USB termination resistors and a clock circuit requiring no external crystal into the device.

Accessory Boards

Accessory Boards were designed to allow students or engineers to easily exercise and explore the capabilities of the various microcontrollers with peripheral devices such as: ADC, DAC, CAN, Ethernet, IrDA, MP3, RS485 and many more.

Note: Accessory Boards are sold separately.

dsPIC-Ready3 Board

A USB supported prototype board for 28-pin dsPIC30F microcontrollers with IDC10 extension.The board is powered by an external 8-16V AC/DC power supply connected via on-board connector.On-board USB to serial UART interface device FT232R easily connects to a PC.

Description

dsPIC-Ready3 Board is the best solution for fast and simple development of 28-pin dsPIC30F microcontroller applications (dsPIC30F1010, dsPIC30F2020 etc.). It includes connectors for connecting the dsPICprog with mikroICD in-system stand-alone programmer. These connectors enable you to program microcontrollers without any other additional devices. There are also IDC10 connectors linked to the microcontroller pins provided on the bpard. They enable many peripheral modules to be connected to the board, so you can quickly assemble functional working environment that perfectly suits your needs.

dsPIC-Ready4 Board features a USB to serial UART interface FT232R which simplifies USB to serial designs and reduces external component count by integrating an external EEPROM, USB termination resistors and a clock circuit requiring no external crystal into the device.

Accessory Boards

Accessory Boards were designed to allow students or engineers to easily exercise and explore the capabilities of the various microcontrollers with peripheral devices such as: ADC, DAC, CAN, Ethernet, IrDA, MP3, RS485 and many more.

Note: Accessory Boards are sold separately.

dsPIC-Ready4 Board

A USB supported prototype board for 28-pin dsPIC30F microcontrollers with IDC10 extension.The board is powered by an external 8-16V AC/DC power supply connected via on-board connector. On-board USB to serial UART interface FT232R easily connects to a PC.

Description

dsPIC-Ready4 Board is the best solution for fast and simple development of 28-pin dsPIC30F microcontroller applications (dsPIC30F2010, dsPIC30F3010, dsPIC30F4012, dsPIC30F2012, dsPIC30F3013 etc.). It includes connectors for connecting the dsPICprog with mikroICD in-system stand-alone programmer. These connectors enable you to program microcontrollers without any other additional devices. There are also IDC10 connectors linked to the microcontroller pins provided on the board. They enable many peripheral modules to be connected to the board, so you can quickly assemble functional working environment that perfectly suits your needs.

dsPIC-Ready3 Board features a USB to serial UART interface device FT232R which simplifies USB to serial designs and reduces external component count by integrating an external EEPROM, USB termination resistors and a clock circuit requiring no external crystal into the device.

Accessory Boards

Accessory Boards were designed to allow students or engineers to easily exercise and explore the capabilities of the various microcontrollers with peripheral devices such as: ADC, DAC, CAN, Ethernet, IrDA, MP3, RS485 and many more.

Note: Accessory Boards are sold separately.

8051-Ready Board

The 8051-Ready Board is the best solution for fast and simple development of 20-, 44-pin DIP and PLCC44 8051 microcontroller applications. It includes connectors for connecting the 8051prog2 in-system stand-alone programmer that enables you to program MCUs without any other additional device. There are also IDC10 connectors linked to the MCU pins provided on the board. These conectors enable numerous additional modules to be connected to the board, so you can quickly

Fusion for KINETIS v8 - World’s First Debugger Over Wifi

Fusion for KINETIS development board integrates first-ever embedded debugger/programmer over WiFi. Enjoy cable-free world!

The onboard CODEGRIP USB-C debugger & programmer, currently support for more than 1100 microcontrollers from different vendors.

USB C debugger enables effortless programming/debugging through generic USB driver connection without the need for additional driver support.

The Fusion for KINETIS v8 development board features new display connector. New connector has a female 2x20-pin support, which allows different screen sizes as well as technologies.

FUSION FOR TIVA V8

Fusion for TIVA development board integrates first-ever embedded debugger/programmer over WiFi. Enjoy cable-free world!

The Fusion for TIVA v8 offers five improved mikroBUS™ sockets, where you can place any of the 600+ different Click boards™. Adding, the infinite amount of possibilities with the largest add-on board selection in the world.

The onboard CODEGRIP USB-C debugger & programmer, currently support for more than 1100 microcontrollers from different vendors.

USB C debugger enables effortless programming/debugging through generic USB driver connection without the need for additional driver support.

Fusion for STM32 v8

Fusion for STM32 development board integrates first-ever embedded debugger/programmer over WiFi. Enjoy cable-free world!

The onboard CODEGRIP USB-C debugger & programmer, currently support for more than 1100 microcontrollers from different vendors.

CODEGRIP Suite is a powerful software suite that offers complete control over the Fusion for STM32 v8 development board. It is used to intelligently manage programming and debugging tasks, as well as various other options and settings of the development board.

USB-C debugger enables effortless programming/debugging over generic USB driver connection without the need for additional driver support.

The Fusion for STM32 v8 development board features new display connector. New connector has a female 2x20-pin support, which allows different screen sizes as well as technologies.

Fusion for ARM v8

Fusion for ARM development board integrates first-ever embedded debugger/programmer over WiFi. Enjoy cable-free world!

The onboard CODEGRIP USB-C debugger & programmer, currently support for more than 1100 microcontrollers from different vendors.

CODEGRIP Suite is a powerful software suite that offers complete control over the Fusion for ARM v8 development board. It is used to intelligently manage programming and debugging tasks, as well as various other options and settings of the development board.

USB-C debugger enables effortless programming/debugging over generic USB driver connection without the need for additional driver support.

Hexiwear Workstation

Fusion for ARM development board integrates first-ever embedded debugger/programmer over WiFi.

While Hexiwear combines style and usability found in high-end consumer devices, with the functionality of sophisticated engineering development platforms, the Hexiwear Workstation offers you the choice of expandability. Equipped with 4 mikroBUS™ sockets, an onboard programmer and debugger, a microSD card slot, digital temperature sensor, buttons, LEDs and more. Start your IoT adventure today.

Easy PIC v7

EasyPIC v7 is the seventh generation of MiKroElektronika’s famous PIC development board. It is the product of accumulated knowledge over the past 10 years, and it’s state of the art of design, functionality and quality. It is loved by beginners and hobbyists, as well as professionals, and used in education and development by thousands. Board comes with PIC18F45K22 device.

Amazing Connectivity

EasyPIC v7 is all about connectivity. Having four different connectors for each port, you can connect accessory boards, sensors and your custom electronics easier then ever before.

EasyPIC v7 kits

EasyPIC v7 Special Offers enable you to easily get into and explore the PIC world.
EasyStart kits, CAN communication kit-PIC offering a complete solution for designing CAN network with PIC microcontrollers. Data Acquistion kits for data logging are available based on the EasyPIC v7 platform

Click to read more on about the kits available based on EasyPIC v7 platform

mikroProg on board

What makes this board so unique is that it comes with powerful on-board mikroProg programmer and In-Circuit Debugger, capable of programming more than 387 microcontrollers. This makes development with EasyPIC v7 a whole new experience. Whether you are just a beginner, or a well-trained professional, this remarkable feature is an irreplaceable advantage.

PORTs, buttons and LEDs

We have put a lot of thought in making this EasyPIC so much better than it’s predecessor. With better organization ports are now logically grouped and contain related buttons and LEDs. Tri-state switches simplify settings of pull up and pull down resistors on each pin.

LCD, GLCD & 7seg displays*

We have returned 4-digit 7seg display to EasyPIC v7 so you can now build applications for LCD, GLCD and 7seg, all on the same board! We have organized them in a clean and elegant way, thus increasing their usability.

* Note: 2x16 Character LCD and Graphic LCD with Touch Screen are sold separately.

Supports Click boards™

Two innovative new mikroBUS sockets allow use of dozens of Click accessory boards with EasyPIC™ v7 almost no hardware adjustments. Simply pick the appropriate click board™ and plug it into the mikroBUS™ socket to instantly add new functionality to your prototype. Communication, measurement, display, Real-time clock, GSM, GPS there is a click board available for it.

Examples and Manuals

Examples are available for all mikroE PIC compilers: mikroC, mikroBasic and mikroPascal. They are well commented and each example contains working HEX file which you can load and use right away. Examples demonstrate each on-board module and are a great starting point for projects. User manuals are easy to read, with good explanations and lots of illustrations.

Download Examples
EasyPIC v7 User Manual [9.96MB]
EasyPIC v7 Schematic [1.35MB]

EasyPIC PRO™ v7

EasyPIC PRO™ v7 is a full-featured development board for high pin-count 8-bit PIC® microntrollers. It contains many on-board modules necessary for development variety of applications, including graphics, Ethernet, USB, Temperature measurement and other. On-board mikroProg™ programmer and debugger supports over 155 PIC® microcontrollers. Board is delivered with MCU socket containing PIC18F87K22 microntroller.

MCU Cards

We offer you five populated MCU cards with several most commonly used microcontrollers, and two additional empty MCU cards which you can use to solder any supported microcontroller you need in your projects. After testing and building the final program, you can take your MCU card out of the board socket and use it in your final device.

Click to know more about EasyPIC PRO v7 kits available

mikroProg™ on board

EasyPIC PRO™ v7 comes with powerful on-board mikroProg programmer and In-Circuit Debugger, making this board unique and capable of programming over 155 microcontrollers. Whether you are just a beginner, or a well-trained professional, the remarkable features makes development with EasyPIC PRO™ v7 a whole new experience.

On-board modules for all kinds of development - Displays, Buzzer, Temp sensors, Ethernet, USB

Board has modules for all kinds of development. GLCD with Touch Panel, allow you to develop graphical applications. There is a USB device connector on-board, as well as RS-232 and USB-UART. Piezo buzzer will help you test your sound signalization, and you can use I2C EEPROM to store configuration data. DS1820 and LM35 temp sensor sockets are here too.

Supports Click™ Boards - mikroBUS™ sockets

With three mikroBUS™ sockets dozens of new functionality can be added to the board with minimum hardware adjustments. Click Boards have been designed with great care, for plug and play with out the need for complex settings.

Examples and Manuals

Examples are available for all mikroE PIC compilers: mikroC, mikroBasic and mikroPascal. They are well commented and each example contains working HEX file which you can load and use right away. Examples demonstrate each on-board module and are a great starting point for projects. User manuals are easy to read, with good explanations and lots of illustrations.

Download Examples
EasyPIC Fusion v7 User Manual [5.97MB]
EasyPIC Fusion v7 Schematic [460KB]

EasyPIC Fusion™ v7

EasyPIC Fusion™ v7 combines support for three different architectures: dsPIC33, PIC24 and PIC32 in a single development board It contains many on-board modules, including multimedia, Ethernet, USB, CAN and other. On-board mikroProg™ programmer and debugger supports 101 microcontrollers via MCU cards.

mikroProg™ on board

One of the key advantages of this board is that it comes with powerful on-board mikroProg™ programmer and In-Circuit Debugger, capable of programming 101 microcontrollers.

Debugger is supported in mikroElektronika compilers. It implements Step-over, Step-into, Step-out, Run, Run To Cursor debugging operations, as well as standard and advanced breakpoints.

Buzzer, Temp sensors, EEPROM

Board has modules for all kinds of development. TFT with Touch Panel, along with stereo mp3 codec allow you to develop multimedia applications. There are 2 USB connectors and 2 USB-UART connectors on the board as well. Piezo buzzer will help you test your sound signalization, and you can use I2C EEPROM, Serial Flash and microSD card slot to store data. DS1820 and LM35 temp sensor sockets are here too

Supports Click™ Boards - mikroBUS™ sockets

EasyPIC Fusion™ v7 provides two mikroBUS™ sockets for mikroElektronika Click™ Boards. With two mikroBUS™ sockets you can add dozens of new functionality to your board with minimum hardware adjustments. mikroBUS provides simple and effective Plug-and-Play connectivity solution. Simply pick the appropriate click board™ and plug it into the mikroBUS™ socket to instantly add new functionality to your prototype. Whether it be communication, measurement, display, Real-time clock, GSM, GPS there is a click board™ for almost everything.

Ethernet on-board

Board is equipped with Ethernet connector and two signal LEDs which enable you to utilize ethernet feature of your devices with Ethernet support. Kits based on EasyPIC Fusion™ v7 platform EasyStart Kits, EasyGPSkits, microACQkits ( data logging) are available on the EasyPIC Fusion™ v7 platform

Click to read more

Examples and Manuals

Examples and libraries are written for all mikroElektronika dsPIC33/PIC24 and PIC32 compilers. They are well commented and each example contains working HEX file which you can load and use right away.

Download Examples
EasyPIC Fusion v7 User Manual [5.97MB]
EasyPIC Fusion v7 Schematic [460KB]

Easy8051 v6 development system

Easy8051 v6 development system supports a wide range of Atmel 8051 microcontrollers. Very fast, on-board USB 2.0 programmer with a simplified driver installation. Serial COG Display that uses SPI interface is available for displaying text messages. Easy8051 v6 allows 8051 microcontrollers to be interfaced with numerous peripheral devices. It comes with an AT89S8253 and On-board 16-bit I/O port expander MCP23S17 that uses SPI communication. Seven-segment displays in multiplex mode are connected to the microcontroller socket.

BIG8051 development system

The most sophisticated development system for 8051 microcontrollers from MikroElektronika. It is all about power beauty and quality.

This board is a full-featured development environment for Silicon Labs C8051Fxxx microcontrollers. It has numerous on-board modules that help you to create your prototype device easily. It comes with C8051f040 microcontroller.

Programming and debugging

Board can be programmed using USB Debug Adapter - programmer.

Connectivity

All microcontroller pins are available through IDC10 port connectors, so you can easily attach other peripherals to your board.

Numerous peripherals

Board has a magnificent set of on-board modules: Serial Ethernet, Serial Flash, Serial RAM, Serial EEPROM, MMC/SD card, CAN, USB-UART, two RS-232 connectors, and more.

Fast MCU on-board

Provided MCU card contains powerful C8051F040 MCU. It is a 25 MIPS, 64 kB Flash, 100-Pin Mixed-Signal MCU, with 12-bit DAC, CAN, SM-Bus and other peripherals.

Highest quality components

We have put a lot of thought into the board design to make it beautiful and compact, and we used only the highest quality SMD components for production.

More than enough storage

We have equipped the board with four serial memory modules including EEPROM, RAM, Flash and MMC/SD mass storage, so you won’t lack memory any more.

mikromedia workStation v7

Note: mikromedia boards are sold separately.

mikromedia workStation v7 provides full development environment for mikromedia boards ver. 1.05 and above. It features on-board debugger, multimedia modules, four mikroBUS host sockets and a large breadboard area. Abstract pin names irrelevant of target mikromedia will bring you enormous flexibility and portability of your code for to supported architecture.

Compact, wearable cool form factor Style and usability of a high-end consumer device in a dev kit. Efficiency and low power consumption. Powered by Kinetis K64 32-bit ARM® Cortex®-M4 MCU. Features several advanced NXP sensors. Equipped with Bluetooth Low Energy. Works with compatible iOS/Android apps. Connects to the cloud.

Hexiwear Color Pack

The first fashion conscious development platform, Hexiwear can be outfitted according to your preferences. Springbud green, iris blue, vibrant yellow, or elegant black&blue? Get a color pack to express your style.

Hexiwear Docking Station

The Hexiwear Docking Station is for developers who want complete control over Hexiwear’s hardware. Expand Hexiwear with up to three click boards and turn it into something completely different. Upload new firmware through the USB port using the onboard OpenSDA programmer; or connect an external programmer to the Cortex Debug connector. Expand Hexiwear’s memory with an SD Card. Add audio capabilities using the I2S pinout. See full Documentation.

Hexiwear Power User Pack

The Power User Pack will let you use Hexiwear to its fullest potential.  The Docking station will let you expand Hexiwear’s functionality with hundreds of additional sensors using click boards. You can turn it into a wearable in a second – either a smartwatch using the sporty wristband, or perhaps a keychain using the soft cover. A USB cable and top-glasses in two additional colors are also complete the package.

Hexiwear Battery Pack

Hexiwear Battery Pack will keep your favorite IoT development kit charged. You can add any functionality with the onboard mikroBUS™ socket. Add sensors, transceivers, speech recognition modules and more. No more cables and worrying if the battery on it will last the day.

MCU CARD FOR CEC CEC1302

MCU Card is a standardized add-on board, which allows very simple installation and replacement of the microcontroller unit (MCU) on a development board equipped with the MCU Card socket. By introducing the new MCU Card standard, we have ensured the absolute compatibility between the development board and any of the supported MCUs, regardless of their pin number and compatibility. MCU Cards are equipped with two 168-pin mezzanine connectors, allowing them to support even MCUs with extremely high pin count. Their clever design allows very simple usage, following the well-established plug & play concept of the Click board™ line of product.

MCU CARD FOR MSP432 MSP432P401R

MCU Card is a standardized add-on board, which allows very simple installation and replacement of the microcontroller unit (MCU) on a development board equipped with the MCU Card socket. By introducing the new MCU Card standard, we have ensured the absolute compatibility between the development board and any of the supported MCUs, regardless of their pin number and compatibility. MCU Cards are equipped with two 168-pin mezzanine connectors, allowing them to support even MCUs with extremely high pin count. Their clever design allows very simple usage, following the well-established plug & play concept of the Click board™ line of product.

PIC32 Kits

Get into PIC32 world easier than ever before with PIC32 Kits. These special offers has been carefully created to suite your needs, no matter if you are beginner or experienced user. Get an extra value for your money with these special offers.

Easy Start Kits - PIC32

Best way to enter the world of PIC32 device development, and start creating your first projects. These kits are perfect for beginners.

Visual TFT Kits - PIC32

Make colorful TFT applications using Visual TFT software, compiler of your choice and mikromedia development board.

Easy GPS Kits - PIC32

Develop GPS-based devices with minimum effort and with less programming. GPS kits allow you to become a GPS programming guru.

mikroACQ Kits - PIC32

Learn to get readings from external measurement sensors, log results and build control applications with our acquisition kits.

Easy GSM Kits - PIC32

Increasingly popular GSM and GPRS communication and control is easy to achieve with our PIC32 development kits with GSM Click.

mikroLab Kits - PIC32

Each mikroLab Kit features complete set of tools to get started with programming and hardware interaction using mikroC programming language.

8051 Kits

Start prototyping your devices immediately with 8051 Special Offers. These complete 8051 development solutions will save your time and money as you will get great tools at discount price.

Easy Start Kits - 8051

Best way to enter the world of 8051 microcontrollers, and start creating your first projects. These kits are perfect for beginners.

Easy GSM Kit - 8051

Increasingly popular GSM and GPRS communication and control is easy to achieve with our 8051 development kits with SmartGM862 board.

mikroLab Kits - 8051

Each mikroLab Kit features complete set of tools to get started with programming and hardware interaction using mikroC programming language.
