Programmable Power Modules are a combined power supply and recording scope. They are designed mainly to test and characterise storage devices.
Each module has dual power outputs (5v/12v or 3.3v/12v). The output can be set to any level and slewed rapidly to create voltage patterns.
A linear regulator allows the output to range from 0v to 20% above the nominal rail value.
Voltage and Current is simultaneously measured on both channels, giving a very accurate power reading. Measurements are taken at 250KHz with a range of averaging levels.
On board memory and a variety of triggering options allow power traces to be easily captured and downloaded for analysis.

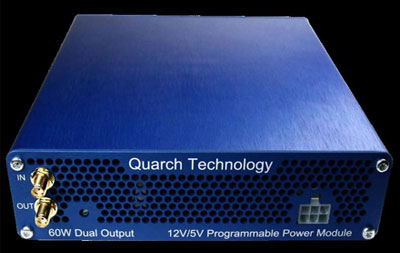

12V/5V Programmable Power Module
Automated solution for power ramping, interruption, margining and measurement.
Fully programmable power supply and measurement tool with 12V, and 5V or 3V3 outputs.
Product Information:
HD Power Module is a flexible power margining and measurement tool and a significant upgrade on the XLC module. This version has 12V and 5V (switchable to 3V3) outputs and is ideal for SAS, SATA and PCIe based devices
XLC (eXtra Low Current) Fully programmable power supply and measurement tool with 12V, and 5V or 3V3 outputs.
Product Information:
This module can perform full power margining from 0V to Nominal +20%, with complex voltage ramps, glitches and more.
Allows a Power Module to inject power into a PCIe GEN4 Card.
Product Information:
This simple interposer fits in an x16 PCIe slot and allows power to be injected into the attached PCIe card. Connected to one of our range of Programmable Power Modules, you can now perform power margining and measurement of the drive while using it within its normal operating environment.
The interposer synchronises with the host power to ensure your PCIe device is powered up at exactly the correct time.
Allows a Power Module to inject power into an ED-SFF device.
Product Information:
This simple interposer sits behind a drive and allows it to be slotted into an enclosure as normal (though with a slight offset of the drive).
Allows a Power Module to inject power into a SAS/SATA/U.2/U.3 disk drive.
Product Information:
This simple interposer sits behind a drive and allows it to be slit into an enclosure as normal (though with a slight offset of the drive).
